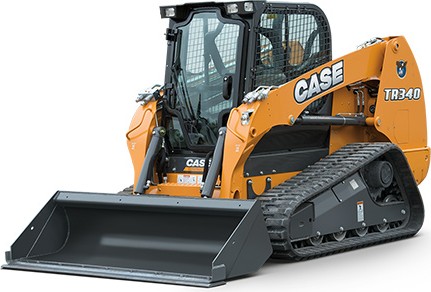

TR340 – Case Construction™

When it comes to emissions regulations, CASE has always believed in going beyond compliance. The Tier 4 Final TR340 does just that. Under its heavy-duty hood is a powerful, 90 hp engine that uses SCR (Selective Catalytic Reduction) technology to deliver best-in-class breakout, torque and auxiliary flow. It also offers EZ-EH controls that make customizing machine responsiveness a breeze. Not to mention an ROC of up to a whopping 3,400 lb. (1 542 kg). Simply put, for a compact track loader that does more than merely meet regulations, count on CASE.





case construction

Description

Engine
Emission Rating Tier 4 Final
Engine make/model F5H FL463 A*F001
Rated RPM – rpm 2500
Net Power – hp (kW) 68 (51)
Peak Torque – lbf / ft (Nm) 232 (314)
Displacement – Inches³ (ltr) 207 (3.4)
Aspiration Turbo



Performance
Max Travel Speed Forward – mph (kph) 5.1 (8.2)
Loader Arms Rated operating load @ 35% of tipping capacity – lbs (kg) 2170 (984)
Rated operating load @ 50% of tipping capacity – lbs (kg) 3100 (1406)
Dump Reach (Max. height) – inches (mm) 25.4 (650)
Straight Tipping Load – lbs (kg) 6200 (2810)



Capacities
Fuel Tank 19.5 gal



Hydraulic System
Main Pump Type Gear
Standard Pump Flow – gallons (US) / min (lt/min) 24.2 (91.5)
Main System Pressure – PSI (bar) 3,046 (210)



Dimension
Length with Bucket Down – inches (mm) 133.7 (3400)
Height to Top of Cab – inches (mm) 78.8 (2000)
Ground Clearance – inches (mm) 8 (200)
Loader Controls – std Joystick
Drive Controls – std Hand / Foot Controls
