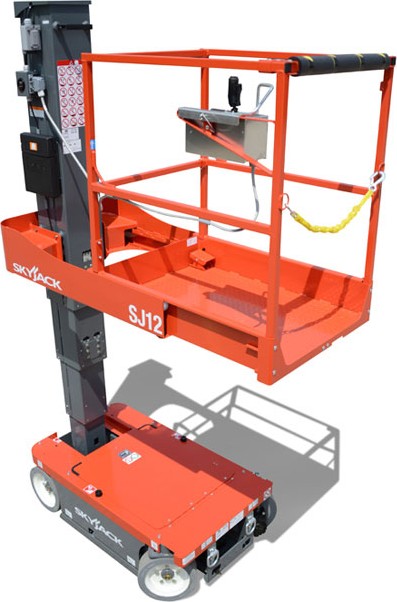

SJ12 Electric Vertical Mast Lift -Skyjack™

Skyjack’s SJ12 self propelled vertical mast lift features a compact footprint and superior maneuverability. The SJ12 has a working height of 18’. When operating in tight workspaces, a high degree steer angle allows superior functionality and flexibility by offering zero inside turning radius. The SJ12 features a 20” traversing platform, providing increased access and the ability to reach over potential obstacles. A unique slide away platform provides easy access to components, when raised or in the stowed position. Skyjack’s standard color coded and numbered wiring system with hard-wired relay based controls help to ensure the new SJ12 lives up to Skyjack’s reputation for quality and serviceability.

  • Drivable at full height
  • Variable speed, front two wheel hydraulic drive
  • Zero inside turning radius
  • Dual holding brakes
  • Proportional controls
  • 20” (0.51 m) Traversing platform
  • 24V DC power source
  • Low voltage battery protection
  • 30% Gradeability
  • Solid rubber, non-marking tires
  • Pothole protection system
  • 110V AC outlet at platform with GFI
  • 28 mph wind rating (12.5 m/s)
  • Tilt alarm with drive & lift cut-out
  • All motion audible alarm
  • Lanyard attachment points
  • Operator horn
  • Lift rings/tie downs
  • Chain entrance
  • Relay based control system
  • Color coded and numbered wiring system
  • Telematics ready



skyjack logo

More Information

sj16-vertical-lift-benefitssj16-vertical-lift-features

Specifications

Work Height 18’ (5.48 m)
Raised Platform Height 12’ (3.65 m)
Lowered Platform Height 18” (0.45 m)
Overall Width 30” (0.76 m)
Overall Length 54” (1.37 m)
Stowed Height 70.3” (1.79 m)
Platform Width (Inside Dimension) 27” (0.69 m)
Platform Length (Inside Dimension) 36.8” (0.93 m)
Ground Clearance (Stowed) 2.1” (5.33 cm)
Ground Clearance (Elevated) 0.63” (1.6 cm)
Weight 1,720 lbs (782 kg)
Local Floor Load (with rated load) 101 psi
Local Floor Load (no load) 80 psi
Gradeability 30%
Turning Radius – Outside 55” (1.4 m)
Drive Speed (Stowed) 2.5 mph (4.0 km/h)
Drive Speed (Raised) 0.5 mph (.80 km/h)
Maximum Drive Height Full Height
Capacity (Overall) 500 lbs (227 kg)
Maximum # of Persons 2
