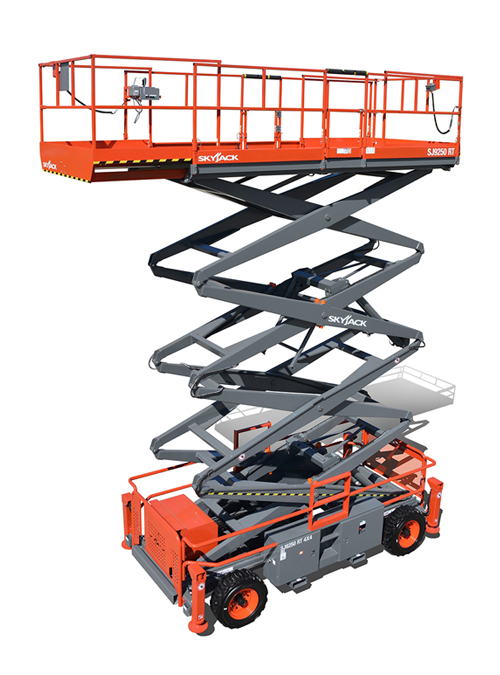

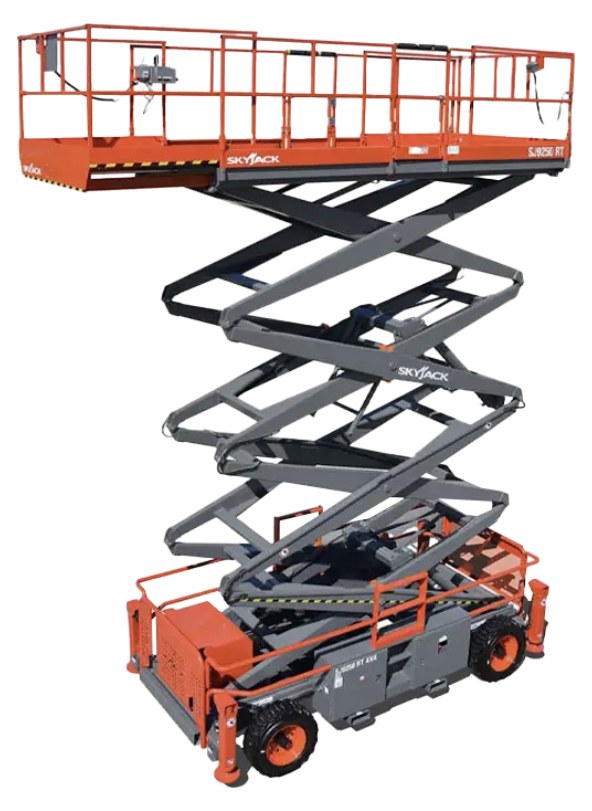

SJ9250 Rough Terrain Scissor Lifts – Skyjack™

Skyjack SJ 9250 delivers a huge platform, soaring work height and heavy duty capacity— all in one package! A fuel efficient GM 1.6L Vortec dual fuel engine powers Skyjack robust axle based 4WD system resulting in 30% gradeability.

The SJ 9250 features an expansive platform, up to 24’ in length, when optional 5’ powered extension decks are added to the front and back of unit. With a working height of 56’, overall capacity of 2,000 lbs, and standard independent/auto leveling outriggers, the SJ 9250 can meet the challenge of any job site. As with every Skyjack model, the SJ 9250 uses an analog based control system, featuring Skyjack standard color coded and numbered wiring, for ease of troubleshooting.





skyjack logo

More Information

sj9250 Skyjack Scissor Lift

Specifications

Work Height 56’ (17.1 m)
Raised Platform Height 50’ (15.2 m)
Lowered Platform Height 79” (2.0 m)
Overall Width 92” (2.3 m)
Overall Length 176” (4.5 m)
Stowed Height (Rails Up) 124.5” (3.2 m)
Stowed Height (Rails Down) 90” (2.3 m)
Platform Width (Inside Dimension) 74” (1.9 m)
Platform Length (Inside Dimension) 168” (4.3 m)
Wheelbase 119” (3.0 m)
Ground Clearance 8” (0.2 m)
Weight 15,200 lbs (6,895 kg)
Gradeability 30%
Turning Radius (Inside) 210” (5.3 m)
Turning Radius – Outside 301” (7.7 m)
Lift Time (With Rated Load) 67 sec
Drive Speed (Stowed) 2 mph (3.2 km/h)
Drive Speed (Raised) 0.6 mph (1 km/h)
Maximum Drive Height 26’ (7.9 m)
Capacity (Overall) 1,500 lbs (680 kg)
Maximum # of Persons 5
Capacity With 2 Extension Decks* Main 227 kg
Capacity With 2 Extension Decks* Front Ext. 227 kg
Capacity With 2 Extension Decks* Rear Ext. 227 kg
