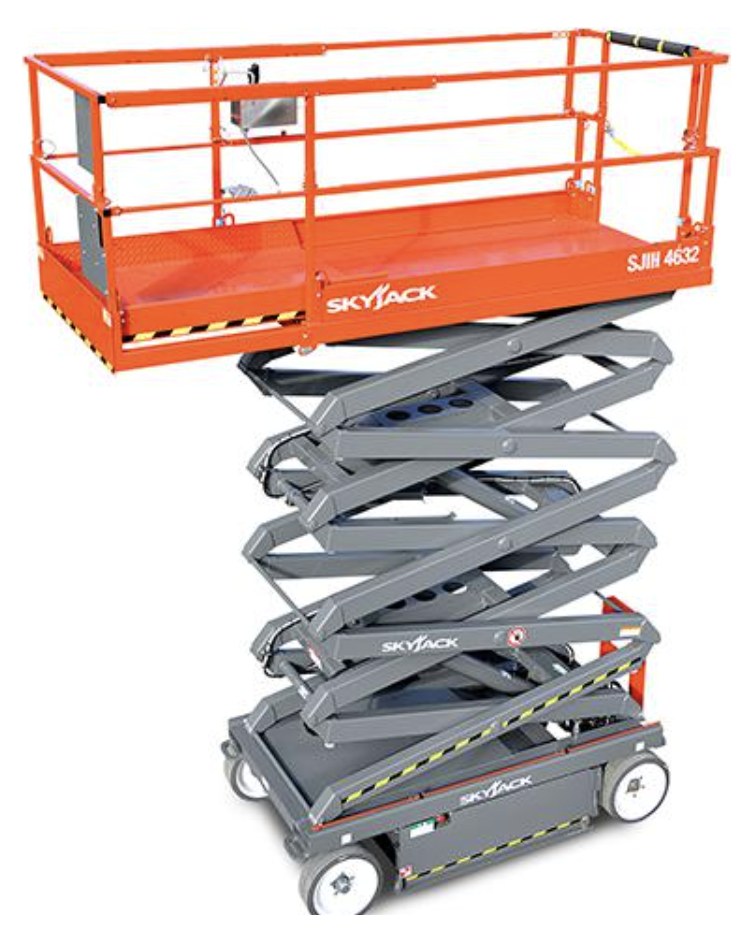

SJ4632 Scissor Lift – Skyjack™

Combining Skyjack easy to service, low maintenance design features with a high capacity and large platform area, makes the SJIII 4632 suitable for any on-slab application. Featuring variable speed rear wheel hydraulic drive, it offers a working height of 38’, along with 25% gradeability.

Drivable at full height, the SJIII 4632 also features a standard 4’ roll out extension deck that can be secured in multiple positions. Consistent with Skyjack robust and reliable design features, the SJIII 4632 utilizes Skyjack standard color coded and numbered wiring system with analog based controls.





skyjack logo

More Information

Skyjack sj4626 / sj4632

Specifications

Work Height 38’ (11.6 m)
Raised Platform Height 32’ (9.8 m)
Lowered Platform Height 48.5” (1.2 m)
Overall Width 46” (1.2 m)
Overall Length 91” (2.3 m)
Stowed Height (Rails Up) 88” (2.2 m)
Stowed Height (Rails Down) 74” (1.9 m)
Platform Width (Inside Dimension) 42” (1.1 m)
Platform Length (Inside Dimension) 84” (2.1 m)
Extension Deck (Roll Out) 4’ (1.2 m)
Wheelbase 69” (1.8 m)
Ground Clearance (Stowed) 3.5” (8.9 cm)
Ground Clearance (raised) 0.75” (1.9 cm)
Weight 5,075 lbs (2,302 kg)
Gradeability 25%
Turning Radius (Inside) 47.5” (1.2 m)
Turning Radius – Outside 93.5” (2.4 m)
Lift Time (With Rated Load) 59 sec
Drive Speed (Stowed) 2 mph (3.2 km/h)
Drive Speed (Raised) 0.6 mph (1 km/h)
Maximum Drive Height Full Height
Capacity (Overall) 700 lbs (318 kg)
Maximum # of Persons 2
