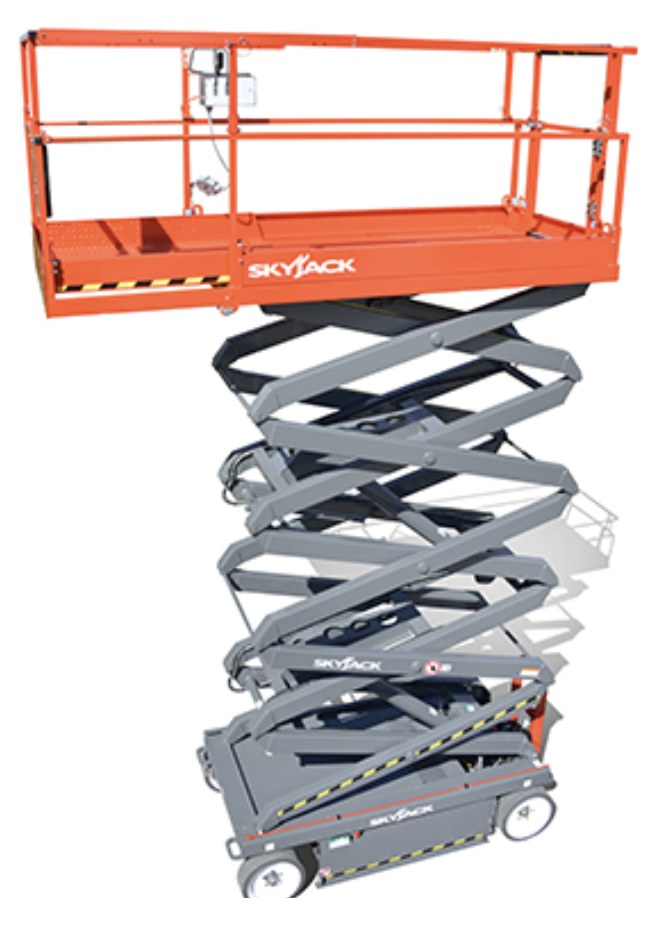

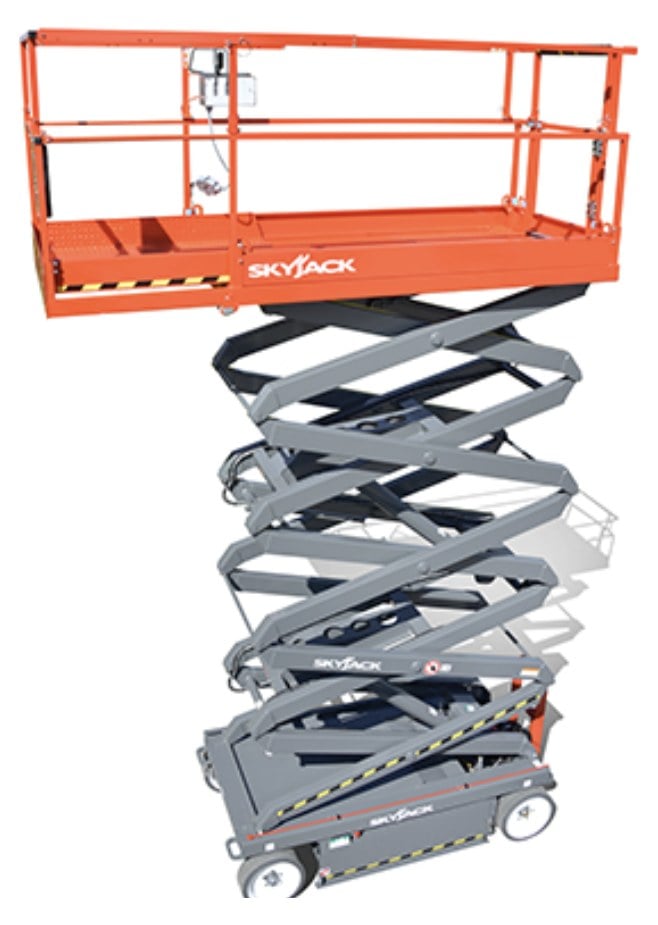

SJ4626 Scissor Lift – Skyjack™

Consistent with Skyjack’s robust and reliable design features, the SJIII 4626 offers an easy to service, low maintenance design in a versatile package. Drivable at full height, the SJIII 4626 offers a working height of 32’, gradeability of 25%, and features a 4’ roll out extension deck that can be secured in multiple positions.

Offering a large platform area and a high capacity, the SJIII 4626 comes equipped with variable speed rear wheel hydraulic drive. Utilizing Skyjack’s standard color coded and numbered wiring system with analog based controls ensures the SJIII 4626 will maintain its industry leading life cycle value.





skyjack logo

More Information

Skyjack sj4626 / sj4632

Specifications

Work Height 26’ (7.9 m)
Raised Platform Height 20’ (6.1 m)
Lowered Platform Height 38” (1.0 m)
Overall Width 32” (0.8 m)
Overall Length 91.5” (2.3 m)
Stowed Height (Rails Up) 77.5” (2.0 m)
Stowed Height (Rails Down) OPT 63.5” (1.6 m)
Platform Width (Inside Dimension) 28” (0.7 m)
Platform Length (Inside Dimension) 84” (2.1 m)
Extension Deck (Roll Out) 3’ (0.9 m)
Wheelbase 69” (1.8 m)
Ground Clearance (Stowed) 3.5” (8.9 cm)
Ground Clearance (raised) 0.75” (1.9 cm)
Weight 3,510 lbs (1,592 kg)
Gradeability 30%
Turning Radius (Inside) 50” (1.3 m)
Turning Radius – Outside 108” (2.7 m)
Lift Time (With Rated Load) 33 sec
Drive Speed (Stowed) 2 mph (3.2 km/h)
Drive Speed (Raised) 0.7 mph (1.1 km/h)
Maximum Drive Height Full Height
Capacity (Overall) 900 lbs (408 kg)
Maximum # of Persons 2
