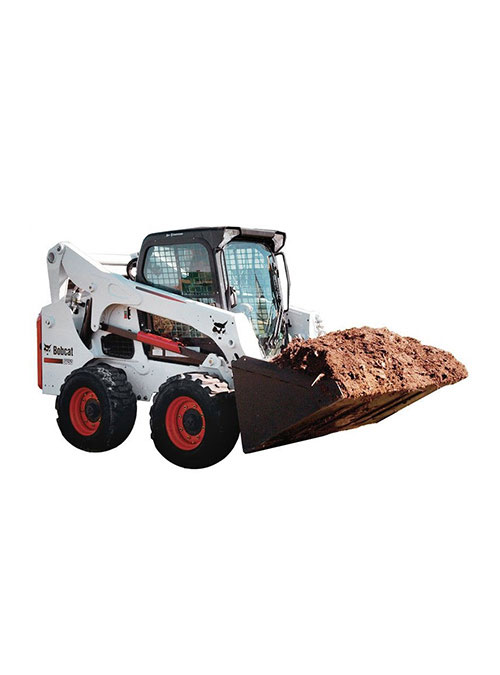

Power your way to top performance with the Bobcat® S750 skid-steer loader. With its vertical lift path that delivers 11 ft. of lift height, the S750 is a popular choice for many loading applications. The S750 features a Tier 4 diesel engine.
S750 – Bobcat™
More Information
Call for Details.
Specifications
| Engine | |
|---|---|
| Engine Cooling | Liquid |
| Emissions Tier (EPA) | Tier 4 |
| Engine Fuel | Diesel |
| Horsepower | 85 HP |
| Turbocharged Engine | Yes |
| Performance | |
|---|---|
| Rated Operating Capacity (SAE) | 3200 lbs |
| Tipping Load |
6400 lbs
|
| Operating Weight | 8893 lbs |
| Travel Speed |
7.1 mph
|
| Travel Speed (2-speed option) | 12.3 mph |
| Capacities | |
|---|---|
| Fuel Tank | 23.9 gal |
| Hydraulic System | |
|---|---|
| System Relief @ Quick Couplers | 3500 psi |
| Auxiliary Std Flow | 23 GPM |
| Auxiliary High Flow | 36.6 gal/min |
| Dimension | |
|---|---|
| Length |
141.6 in
|
| Length without Attachment | 114.3 in |
| Length with Standard Bucket | 141.6 in |
| Width | 72.1 in |
| Width (with bucket) | 74 in |
| Height | 81.3 in |
| Height with Operator Cab | 81.3 in |
| Height to Bucket Hinge Pin | 132 in |
| Reach @ Maximum Height | 31.5 in |
| Turning Radius | 85.8 in |
| Wheelbase | 48.3 in |
